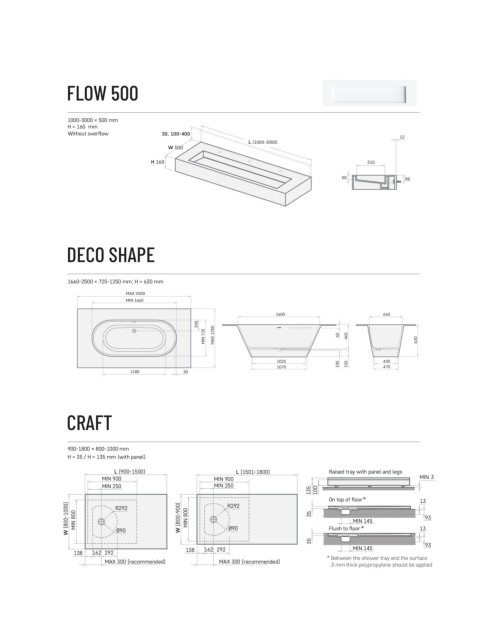

Page 25 - PAA Made to Measure product brochure EE-EN
P. 25
FLOW 500
1000-3000 × 500 mm
H = 160 mm
Without overflow 30, 100-400
12
L (1000-3000)
W 500
H 160 310
50 85
DECO SHAPE
1660-2500 × 725-1250 mm; H = 630 mm
MAX 2500
MIN 1660
1600 665
200
MIN 725 MAX 1250 60 465 630
1025 105 150 430
1070 475
1180 30
CRAFT
900-1800 × 800-1000 mm
H = 35 / H = 135 mm (with panel)
L (900-1500) L (1501-1800) Raised tray with panel and legs
MIN 900 MIN 900 MIN 3
MIN 250 MIN 250
135 100
On top of floor * 13
W (800-1000) MIN 800 W (800-900) MIN 800 Ø90 35 Flush to floor * 13 93
R292
R292
MIN 145
Ø90
35 93
138 162 292 MIN 145
138 162 292
* Between the shower tray and the surface
MAX 300 (recommended) MAX 300 (recommended)
3 mm thick polypropylene should be applied
